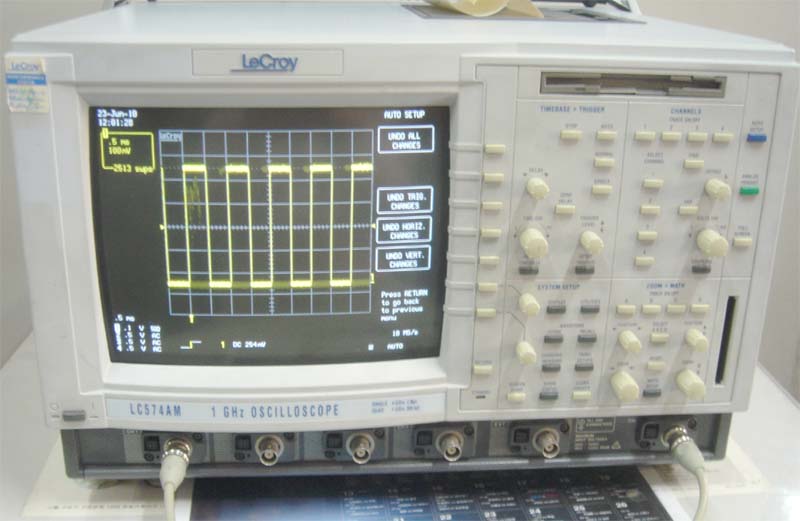

LeCroy LC574AM Digital Oscilloscope 1GHz, 4GSa/s, 4ch
The LeCroy LC574AM oscilloscope is a graph-displaying device – it draws a graph of an electrical signal. In most applications, the graph shows how signals change over time: the vertical (Y) axis represents voltage and the horizontal (X) axis represents time. The intensity or brightness of the display is sometimes called the Z axis.
The LeCroy LC574AM oscilloscope's simple graph can tell you many things about a signal, such as: the time and voltage values of a signal, the frequency of an oscillating signal, the “moving parts” of a circuit represented by the signal, the frequency with which a particular portion of the signal is occurring relative to, other portions, whether or not a malfunctioning component is distorting the signal, how much of a signal is direct current (DC) or alternating current (AC) and how much of the signal is noise and whether the noise is changing with time.
Performance Characteristics of the LC574AM
Form Factor Bench-top Bandwidth 1 GHz
Number of Channels 4 ch
Simultaneous Channels 4 ch
Simultaneous Maximum Sampling Rate/ch 2 GSa/s
One ch. only max. sampling rate 4 GSa/s
Max. Record Length 2000000 pt/sec
Min. Vertical Sensitivity 2 mV/div
Maximum Vertical Sensitivity 10 V/div
Rise time 350 ps
Number of Bits 8 bits
Input Impedance 10 MOhm
Input Impedance (alternate) 50 Ohm
Input Coupling AC,DC,GND Maximum
Input Voltage 400 Vrms Maximum
Input#2 (for Impedance #2) 5 Vrms
Main time base - lowest 1 ns/div
Main time base - highest 1000 s/div
Timebase accuracy .001 %
Trigger Source External,Internal
Trigger Modes Auto,Edge,Normal,Pattern,Single,State,Stop
Minimum Trigger Holdoff 10 ns
Trigger Sensitivity 5 mV
Minimum Glitch Trigger 2 ns
Display Type Color CRT
Display Size 22.86 cm
Display modes Auto,Normal,Single,Stop
Programmability/Connectivity of the LC574AM
User Interface Proprietary
Ports to Peripheral Devices GPIB,RS232C
Test Pattern Storage 4 Patterns
Novram data storage Yes
Data Storage Type FDD
LC574AM Compliance
CE Compliance Compliant
UL Compliance Compliant
LC574AM Power Requirements
Input Power Universal (Auto Sense and Switch)
LC574AM Physical Dimensions
Width: (N/A)
Height: 264 mm(10.39 in)
Length: 453 mm(17.83 in)
Weight: 20 kg(44.09 lb) |
